Pultruded Fiberglass Profiles

Pultruded Fiberglass Profiles are tailored precisely to meet the requirements of your specific application. A variety of reinforcement types and resin systems are employed to achieve optimal performance.

Roving reinforcements (unidirectional glass fibers) are used to deliver high tensile and flexural strength. For enhanced structural performance in multiple directions, mat layers (multidirectional fibers) are integrated. Hybrid constructions (e.g., mat/roving/mat) combine the strengths of both approaches, ensuring balanced mechanical properties.

A wide range of resin systems are available to suit different environments and performance criteria, including Polyester (UP, UP-Iso), Vinylester (VE), Epoxy (EP), Methacrylic (A), and Polyurethane (PU) matrices. Each system offers distinct advantages in terms of chemical resistance, thermal stability, and mechanical performance.

By carefully selecting the type of reinforcement, fiber orientation, and resin matrix, you can achieve a pultruded fiberglass profile that is perfectly matched to your technical and environmental demands. We are pleased to offer expert guidance in choosing the most appropriate materials and design to meet your specific application needs. Please feel free to contact us for consultation.

Common profiles

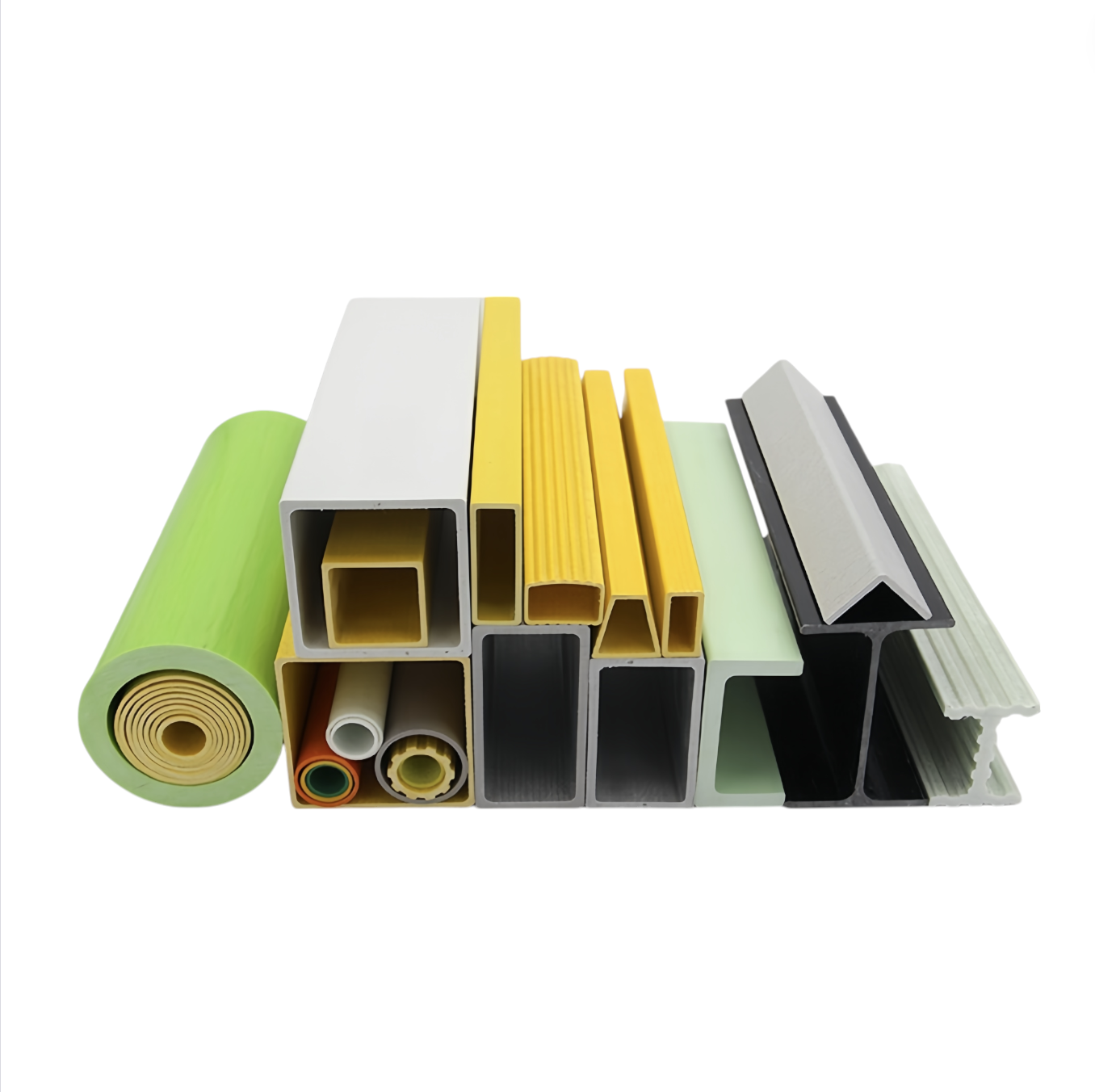

Commonly used profiles include rods, tubes, solid profiles (such as I-beam, channel, and square shapes), as well as hollow sections.Our company is equipped with a complete production line for profiles, molds, and equipment, and we can provide customized solutions based on customer requirements.

Production process

Pultruded fiberglass profiles are manufactured using the pultrusion process, in which continuous strands of roving, mats, tapes, or fabrics—impregnated with resin—are pulled through a heated mold. Under constant traction, the materials are shaped, cured, and continuously formed into fiberglass profiles of unlimited length.

Advantages of Pultruded Fiberglass Profiles

Excellent resistance to chemicals and environmental corrosion
High strength, lightweight, and impact-resistant
Excellent electrical insulation and non-magnetic properties
Aging-resistant, long service life, and maintenance-free
Fire-retardant, electrically insulating, and thermally insulating
Easy and fast to install and cut
Highly designable with an attractive appearance

Application

Petrochemical Industry: Thanks to the excellent corrosion resistance of fiberglass, it is widely used in the petroleum and chemical sectors for supports of electrical and pneumatic lines, generator radiators, staircases and handrails, operating platforms, walkways, oil tanks, distribution panels and substations, drainage pipes and systems, berth identification markers and subsea markers, sucker rods for oil wells, packing supports in towers, filter plate supports, and more.

Electric Power Industry: Due to its superior properties, pultruded profiles are extensively used as insulating support components, high-voltage cable trays, antenna poles, and high-voltage operating rods.

Construction Industry: Used for roof supports, building railings, and wall reinforcement grids.
